Fugas tecnologicas

Fugas tecno-lógicas

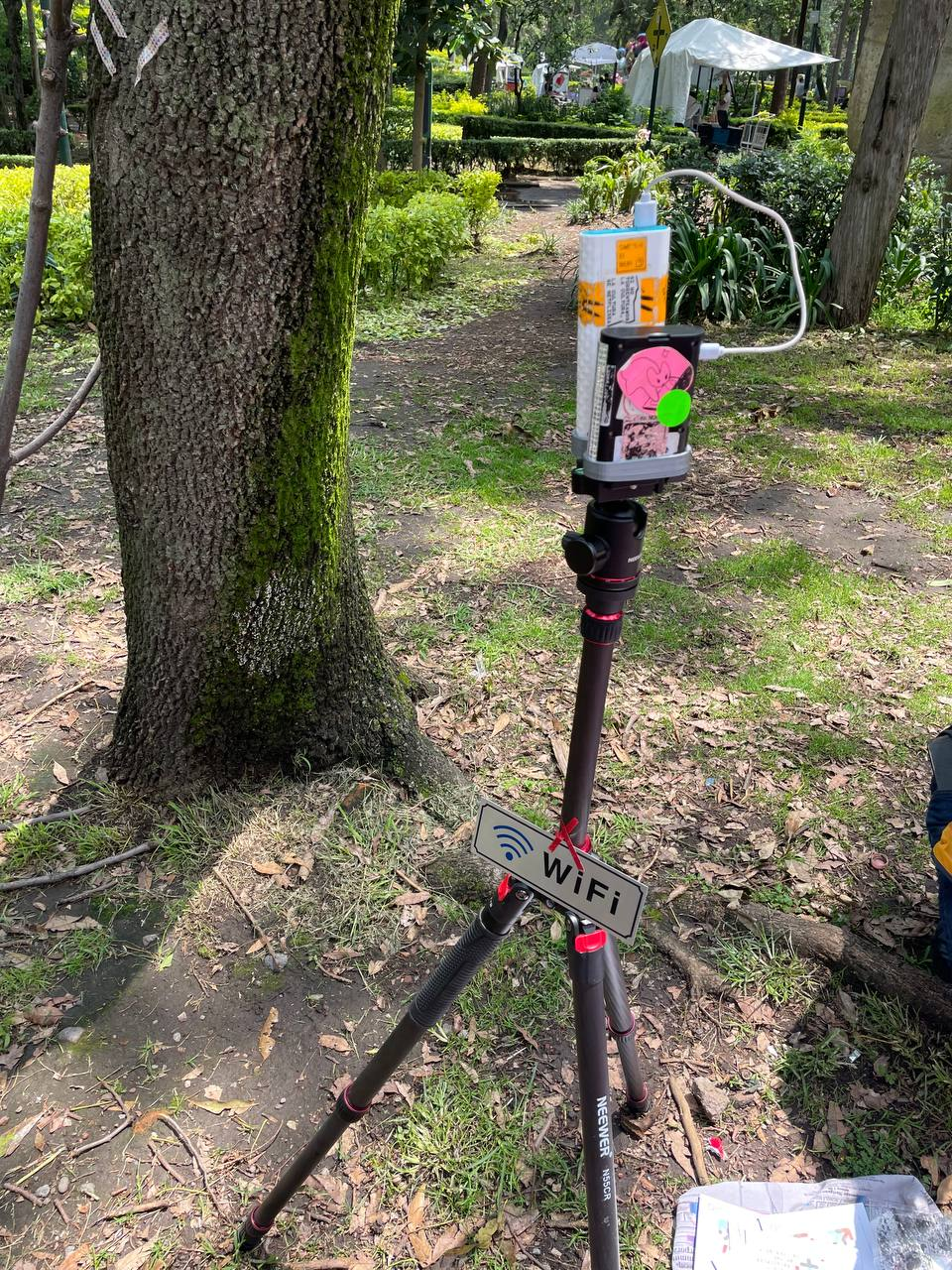

Bibliobox.isla

raspberrypi+cargador_portátil

log

2026.04.24

1. dd imagen:

xzcat 2026-04-21-raspilsos-trixie-arm64-lite.img.xz | sudo dd of=/dev/mmcblk0 bs=4M status=progress conv=fsync

1. en la partición boot > hacer antes de el primer inicio

echo "bibliobox:$(openssl passwd -6 bibliobox)" > userconf

touch ssh

1. buscar la raspi en el router o escanear sudo arp-scan 192.168.1.0/24 Interface: wlp3s0, type: EN10MB, MAC: 7e:6f:05:a7:ed:80, IPv4: 192.168.1.49 Starting arp-scan 1.10.0 with 256 hosts (https://github.com/royhills/arp-scan) 192.168.1.1 2c:96:82:2b:58:44 (Unknown) 192.168.1.34 ec:2e:98:da:ee:b3 AzureWave Technology Inc. 192.168.1.48 a8:64:f1:f8:e2:1a Intel Corporate 192.168.1.50 ba:99:77:e5:86:0e (Unknown: locally administered) 192.168.1.51 e0:99:71:af:0e:4d Samsung Electronics Co.,Ltd 192.168.1.41 36:0e:52:19:9a:7a (Unknown: locally administered) 192.168.1.37 94:db:c9:f7:2b:ae AzureWave Technology Inc. 192.168.1.64 40:e2:30:f7:bd:15 AzureWave Technology Inc.

2. detectar en nnuestro router que ip nos asigno para la rpi

por ej: ssh bibliobox@192.168.1.103

1. hotspot.sh

#!/bin/bash

set -e

SSID="Bibliobox"
IP="192.168.4.1"
SUBNET="24"
DHCP_RANGE_START="192.168.4.10"
DHCP_RANGE_END="192.168.4.100"
INTERFACE="wlan0"
SITE_PATH="/srv/bibliobox.isla"

log() { echo "[setup] $1"; }

# 1. Instalar paquetes
log "Instalando paquetes"
apt update
apt install -y hostapd dnsmasq nginx rfkill git build-essential libmicrohttpd-dev libjson-c-dev dhcpcd5

# 2. Detener servicios
log "Deteniendo servicios"
systemctl stop hostapd dnsmasq nginx nodogsplash 2>/dev/null || true

# 3. Desactivar wpa_supplicant
log "Desactivando wpa_supplicant"
systemctl disable wpa_supplicant 2>/dev/null || true
systemctl stop wpa_supplicant 2>/dev/null || true

# 4. Desbloquear WiFi
if rfkill list wifi | grep -q "Soft blocked: yes"; then
    log "Desbloqueando WiFi"
    rfkill unblock wifi
fi

# 5. País WiFi (clave)
log "Configurando país WiFi"
iw reg set AR || true

# 6. IP estática
if ! grep -q "$IP" /etc/dhcpcd.conf 2>/dev/null; then
    log "Configurando IP estática"
    cat <<EOF >> /etc/dhcpcd.conf

interface $INTERFACE
static ip_address=$IP/$SUBNET
nohook wpa_supplicant
EOF
fi

# 7. Forwarding (clave para portal)
if ! grep -q "net.ipv4.ip_forward=1" /etc/sysctl.conf; then
    log "Activando IP forwarding"
    echo "net.ipv4.ip_forward=1" >> /etc/sysctl.conf
    sysctl -p
fi

# 8. hostapd
log "Configurando hostapd"
cat <<EOF > /etc/hostapd/hostapd.conf
interface=$INTERFACE
driver=nl80211
ssid=$SSID
hw_mode=g
channel=6
auth_algs=1
ignore_broadcast_ssid=0
EOF

sed -i 's|^#DAEMON_CONF=.*|DAEMON_CONF="/etc/hostapd/hostapd.conf"|' /etc/default/hostapd 2>/dev/null || \
echo 'DAEMON_CONF="/etc/hostapd/hostapd.conf"' >> /etc/default/hostapd

# 9. Servicio wlan0-up (reemplazo de rc.local)
log "Creando servicio wlan0-up"
cat <<EOF > /etc/systemd/system/wlan0-up.service
[Unit]
Description=Levantar wlan0
Before=hostapd.service

[Service]
Type=oneshot
ExecStart=/sbin/ip link set $INTERFACE up

[Install]
WantedBy=multi-user.target
EOF

systemctl enable wlan0-up

# 10. dnsmasq
if [ ! -f /etc/dnsmasq.conf.bak ]; then
    log "Configurando dnsmasq"
    mv /etc/dnsmasq.conf /etc/dnsmasq.conf.bak 2>/dev/null || true

    cat <<EOF > /etc/dnsmasq.conf
interface=$INTERFACE
dhcp-range=$DHCP_RANGE_START,$DHCP_RANGE_END,255.255.255.0,12h
address=/#/$IP
EOF
fi

# 11. nginx
log "Configurando nginx"
rm -f /etc/nginx/sites-enabled/default

cat <<EOF > /etc/nginx/sites-available/bibliobox
server {
    listen 80 default_server;
    server_name _;
    root $SITE_PATH;
    index index.html;

    location / {
        try_files \$uri /index.html;
    }
}
EOF

ln -sf /etc/nginx/sites-available/bibliobox /etc/nginx/sites-enabled/bibliobox

# 12. instalar nodogsplash
if ! command -v nodogsplash >/dev/null; then
    log "Instalando Nodogsplash"
    cd /tmp
    rm -rf nodogsplash
    git clone https://github.com/nodogsplash/nodogsplash.git
    cd nodogsplash
    make
    make install
fi

# 13. servicio nodogsplash (orden corregido)
log "Configurando servicio nodogsplash"
cat <<EOF > /etc/systemd/system/nodogsplash.service
[Unit]
Description=Nodogsplash Captive Portal
After=hostapd.service dnsmasq.service
Wants=hostapd.service dnsmasq.service

[Service]
ExecStart=/usr/local/bin/nodogsplash -f
Restart=always

[Install]
WantedBy=multi-user.target
EOF

systemctl daemon-reexec

# 13.1 log "Creando servicio rfkill-unblock (fix WiFi bloqueado)"

cat <<EOF > /etc/systemd/system/rfkill-unblock.service
[Unit]
Description=Unblock WiFi
Before=hostapd.service

[Service]
Type=oneshot
ExecStart=/bin/sh -c "sleep 2 && rfkill unblock wifi"

[Install]
WantedBy=multi-user.target
EOF

systemctl enable rfkill-unblock

# 14. config nodogsplash
if [ ! -f /etc/nodogsplash/nodogsplash.conf ]; then
    log "Configurando nodogsplash"
    mkdir -p /etc/nodogsplash

    cat <<EOF > /etc/nodogsplash/nodogsplash.conf
GatewayInterface $INTERFACE
GatewayAddress $IP
MaxClients 100

SplashPage none
AuthenticateImmediately yes
RedirectURL http://$IP/

FirewallRuleSet authenticated-users {
    FirewallRule allow all
}

FirewallRuleSet preauthenticated-users {
    FirewallRule allow tcp port 80
    FirewallRule allow tcp port 443
    FirewallRule allow udp port 53
}
EOF
fi

# 15. sitio
log "Preparando sitio"
mkdir -p $SITE_PATH

if [ ! -f "$SITE_PATH/index.html" ]; then
cat <<EOF > $SITE_PATH/index.html
<h1 style="text-align:center;">Biblioteca en proceso de creación</h1>
EOF
fi

# 16. habilitar servicios
log "Habilitando servicios"
systemctl unmask hostapd
systemctl enable hostapd dnsmasq nginx nodogsplash

# 17. reiniciar
log "Reiniciando servicios"
systemctl restart dhcpcd || true
systemctl restart dnsmasq
systemctl restart hostapd
systemctl restart nginx
systemctl restart nodogsplash

log "Sistema listo"
log "WiFi: $SSID"
log "Portal: http://$IP/"

1. copiar con rsync nuestro sitio compilado

rsync -avHAX --progress bibliobox.sila/ bibliobox@192.168.1.103:/srv/bibliobox.isla

2026.07.10

1. clonar el repo de la plantilla de biblioteca hecha con sutty.coop.ar e instalar con docker para poder compilar jekyll.

/srv/
│
├── bibliobox-src/              <- repositorio Jekyll (git)
│   ├── _config.yml
│   ├── _posts/
│   ├── assets/
│   ├── Gemfile
│   └── _site/                  <- generado por Jekyll
│
└── bibliobox.isla/             <- lo que nginx sirve
    ├── index.html
    ├── assets/
    └── ...

#!/bin/bash

set -e


# Configuración


REPO_URL="https://gitlab.com/librenauta/bibliobox-jekyll-theme.git"
SRC="/srv/bibliobox-src"
SITE="/srv/bibliobox.isla"

log() {
    echo "[bibliobox] $1"
}

# 1. Dependencias

log "Instalando dependencias"
apt update
apt install -y \
    git \
    docker.io \
    docker-compose-plugin \

systemctl enable docker
systemctl start docker

# 2. Crear estructura

log "Creando estructura"
mkdir -p /srv
mkdir -p "$SITE"

# 3. Clonar repositorio

if [ ! -d "$SRC/.git" ]; then
    log "Clonando repositorio Jekyll"
    git clone "$REPO_URL" "$SRC"
else
    log "Repositorio ya existe"
fi

# 4. Docker compose Jekyll

log "Configurando Jekyll"
cat > "$SRC/docker-compose.yml" <<EOF
services:
  jekyll:
    image: jekyll/jekyll:4
    container_name: bibliobox-jekyll
    working_dir: /srv/jekyll
    volumes:
      - .:/srv/jekyll
      - $SITE:/srv/output

    command: >
      bash -c "
      bundle install &&
      jekyll build --destination /srv/output
      "
EOF

# 5. Primera compilación

log "Compilando sitio"
cd "$SRC"
docker compose run --rm jekyll

# 6. Servicio de compilación


log "Creando servicio systemd"
cat > /etc/systemd/system/bibliobox-build.service <<EOF
[Unit]
Description=Build Bibliobox Jekyll
After=docker.service
Requires=docker.service

[Service]
Type=oneshot
WorkingDirectory=$SRC
ExecStart=/usr/bin/docker compose run --rm jekyll

[Install]
WantedBy=multi-user.target

EOF

systemctl daemon-reload
systemctl enable bibliobox-build.service

# 8. Script de actualización

log "Creando comando update"
cat > /usr/local/bin/bibliobox-update <<EOF
#!/bin/bash
set -e
cd $SRC
git pull
docker compose run --rm jekyll

EOF

chmod +x /usr/local/bin/bibliobox-update

# Final

log "Instalación completa"

echo "Repositorio:"
echo " $SRC"
echo "Sitio nginx:"
echo " $SITE"
echo "Actualizar manualmente:"
echo "bibliobox-update"
echo "Compilar:"
echo " cd $SRC && docker compose run --rm jekyll"
